Smooth movement is the key to ease of usage and longevity

Hardware Accessories - German Kitchen Hardware

Accessories play a major role in smooth movement and longevity of furniture items. For giving hassle free experience to our customers, at KOXYGEN mostly World renowned German hardware fittings (esp German Kitchen Hardware) are used. Moreover usage of standard accessories results in their easy maintenance, repairing and replacement in future. Most of hardware accessories used in our products are from following brands which makes a India No 1 German Kitchens.

Base Unit Drawers

S. No.	Name	Specifications	Remarks

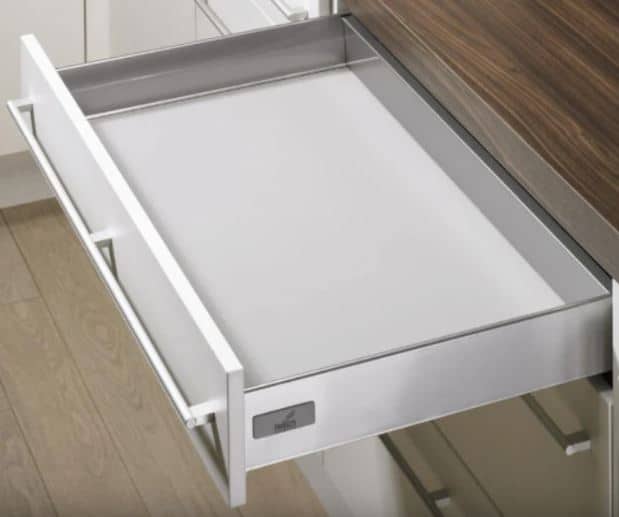

1	Innotech	Width: Variable Height (MM): 70 Depth (MM): 350, 420, 470, 520, 620 Weight Capacity (Kg): 30, 50	Desirable Width range is 450-900 MM

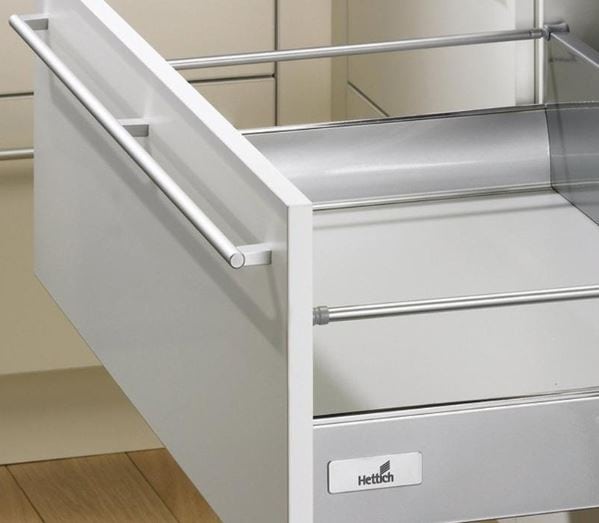

2	Innotech PNP	Width: Variable Height (MM): 144, 176 Depth (MM): 350, 420, 470, 520, 620 Weight Capacity (Kg): 30, 50	Desirable Width range is 450-900 MM. Used for big pots and pans.
3	Innotech Atira	Width: Variable Height (MM): 70 Depth (MM): 350, 420, 470, 520, 620 Weight Capacity (Kg): 30, 50	Desirable Width range is 450-900 MM
4	Innotech Atira PNP	Width: Variable Height (MM): 144, 176 Depth (MM): 350, 420, 470, 520, 620 Weight Capacity (Kg): 30, 50	Desirable Width range is 450-900 MM. Used for big pots and pans.

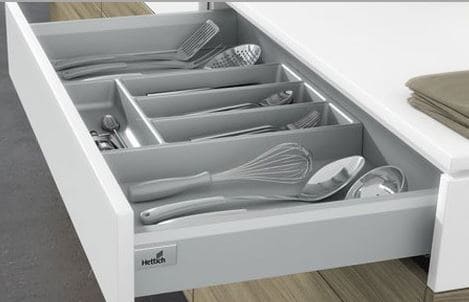

5	Arcitech	Width: Variable Height (MM): 94 Depth (MM): 400, 500, 550, 650 Weight Capacity (Kg): 40, 60, 70	Desirable Width range is 450-900 MM

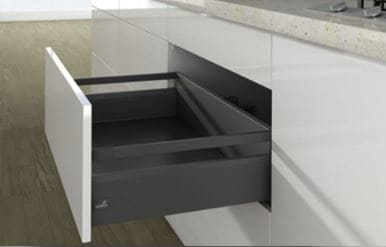

6	Arcitech PNP	Width: Variable Height (MM): 186 Depth (MM): 400, 500, 550, 650 Weight Capacity (Kg): 40, 60, 70	Desirable Width range is 450-900 MM. Used for big pots and pans.

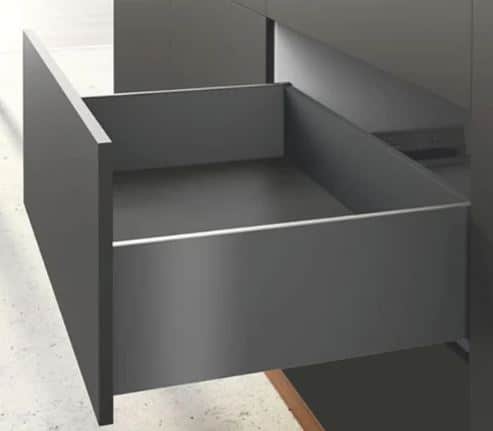

7	Aventech	Width: Variable Height (MM): 101, 187, 251 Depth (MM): 400, 450, 500, 550 Weight Capacity (Kg): 30, 40, 70	Desirable Width range is 450-900 MM

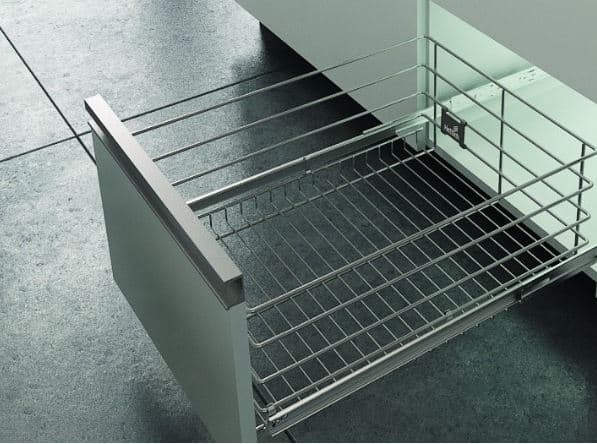

8	Wire Baskets	Width: 450, 600, 900 Height (MM): 100, 150, 200 Depth (MM): 500 Weight Capacity (Kg): 30	Fixed Width and Height. Used for storing closed containers.

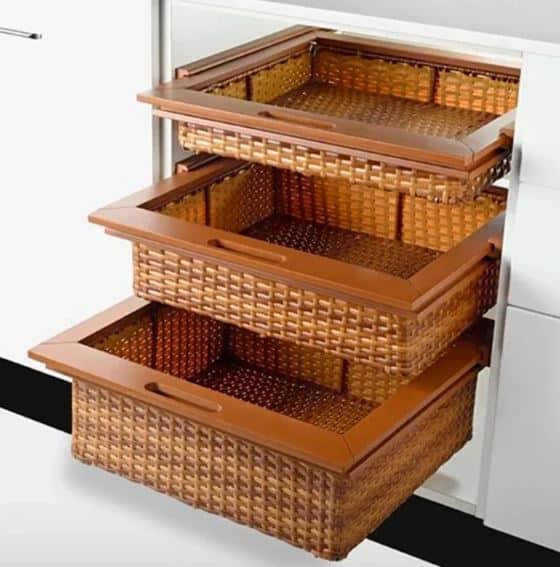

9	Wicker Baskets	Width: 450, 600 Height (MM): 100, 150, 200 Depth (MM): 500 Weight Capacity (Kg): 10-20	Fixed Width and Height. Used for storing Raw Vegetable, fruits etc.

Drawer Organisers

S. No.	Name	Specifications	Remarks

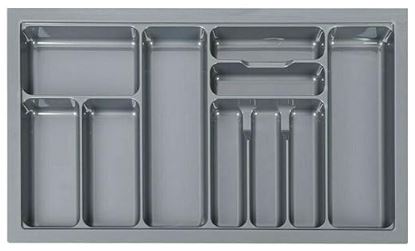

1	PVC Cutlery	Width (MM): 450, 600, 900 MM Height (MM): 120-180 Depth (MM): 470-550 Weight Capacity (Kg): 10	Available only in standard widths. Used in both Tandem and Wire baskets.
2	Steel Cutlery	Width (MM): 450, 600, 900 Height (MM): 120-180 Depth (MM): 470-550 Weight Capacity (Kg): Not Applicable	Available only in standard widths. Used only in Tandem baskets.
3	Pull Down	Width (MM): 600, 900 MM Height (MM): 120-180 Depth (MM): 470-550 Weight Capacity (Kg): 12-15	Only available in standard widths. Used only in Tandem baskets.

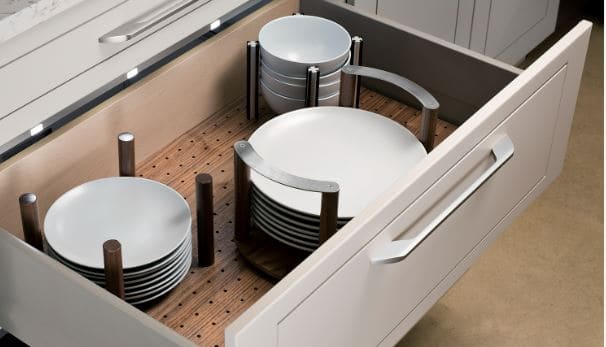

4	Wooden Dish Organiser	Width (MM): 600, 900 Height (MM): Min 240 Depth (MM): 470 Min Weight Capacity (Kg): Drawer Capacity	Only available in standard widths. Used only in Tandem baskets.

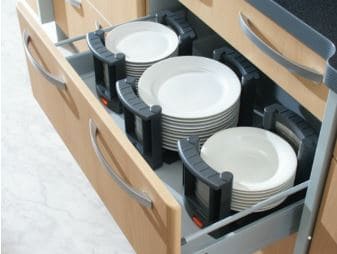

5	PVC Dish Organiser	Width (MM): 600, 900 Height (MM): Min 240 Depth (MM): 470 Min Weight Capacity (Kg): Drawer Capacity	Only available in standard widths. Used only in Tandem baskets.

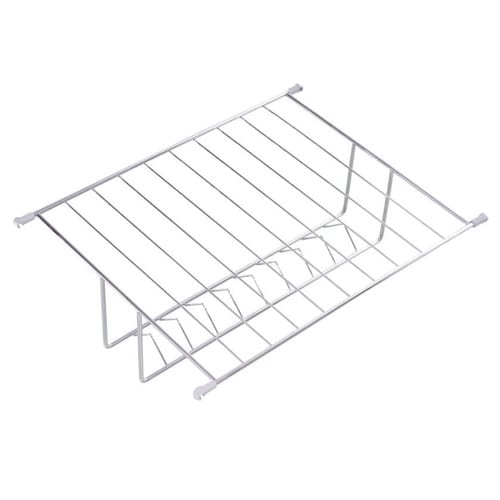

6	Thali Inlet	Width (MM): 300 Min Height (MM): 280 Min Depth (MM): 500 Weight Capacity (Kg): Drawer Capacity	Only available in standard sizes. Used only in wire baskets.

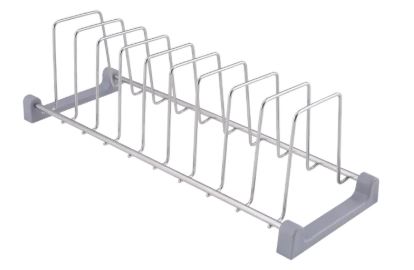

7	Thali Inlet 470	Width (MM): 300 Min Height (MM): 270 min Depth (MM): 470 Weight Capacity (Kg): Drawer Capacity	Only available in standard sizes. Used only in Tandem baskets.

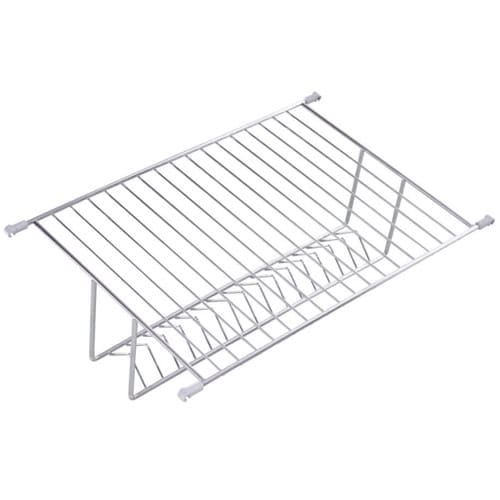

8	Plate Inlet	Width (MM): 300 Min Height (MM): 270 Min Depth (MM): 500 Weight Capacity (Kg): Drawer Capacity	Only available in standard sizes. Used only in wire baskets.

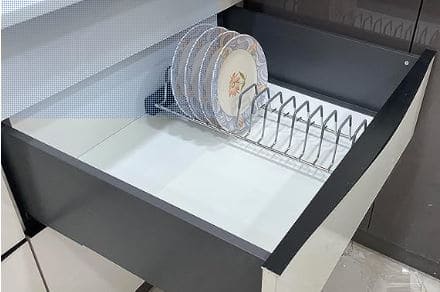

9	Plate Inlet 470	Width (MM): 300 Min Height (MM): 270 Min Depth (MM): 470 Weight Capacity (Kg): Drawer Capacity	Only available in standard sizes. Used only in Tandem baskets.

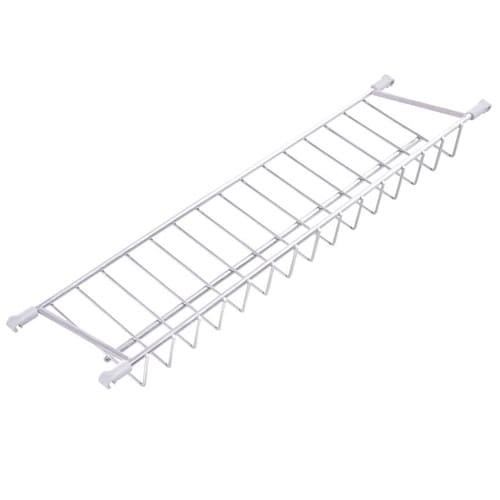

10	Cup and Saucer Inlet	Width (MM): 220 Min Height (MM): 150, 200 Depth (MM): 500 Weight Capacity (Kg): Not Applicable	Only available in standard sizes. Used only in wire baskets.

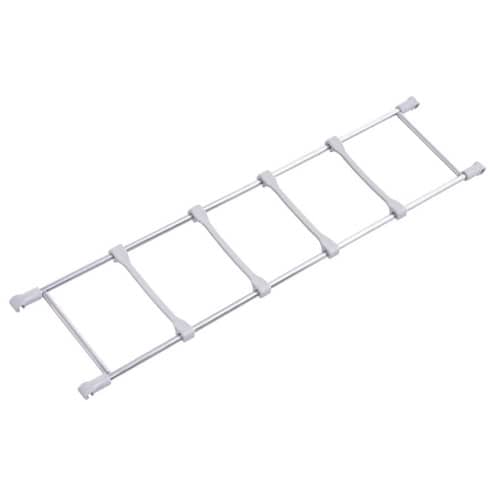

11	Bottle Separator Inlet	Width (MM): Min 100 Height (MM): Not Applicable Depth (MM): 500 Weight Capacity (Kg): Not Applicable	Only available in standard sizes. Used only in wire baskets.

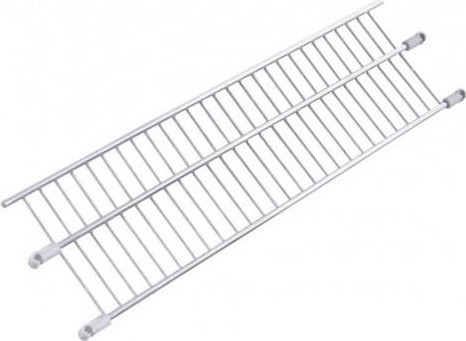

12	Basket Divider Inlet	Width (MM): Not Applicable Height (MM): 100, 150, 200 Depth (MM): 500 Weight Capacity (Kg): Not Applicable	Only available in standard sizes. Used only in wire baskets.

Base Unit - Others

S. No.	Name	Specifications	Remarks

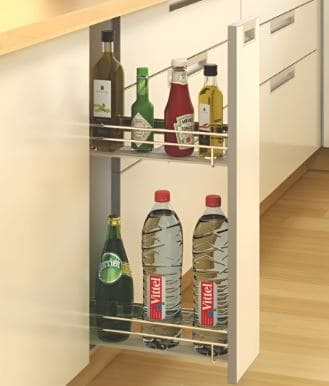

1	BPO 2 Tier	Width: 150, 200, 300 Height (MM): 650-720 Depth (MM): 520 Weight Capacity (Kg): 20-30	Fixed Width and Height. Used for storing jars, Small boxes, bottles etc.
2	BPO 3 Tier	Width: 150, 200, 300 Height (MM): 650-720 Depth (MM): 520 Weight Capacity (Kg): 20-30	Fixed Width and Height. Used for storing jars, Small boxes, bottles etc.

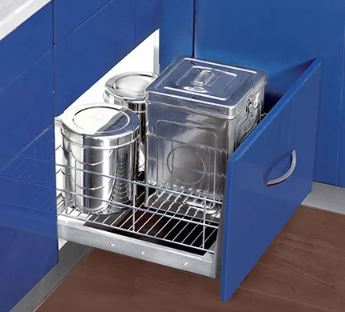

3	Grain Trolley	Width: 450, 600 Height (MM): 400-550 Depth (MM): 520 Weight Capacity (Kg): 30-70	Fixed Width and Height. Used for storing grain drums, boxes etc.

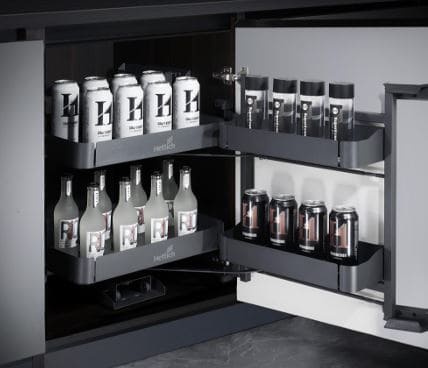

4	Junior Pantry Unit	Width: 600 Height (MM): 650-720 Depth (MM): 520 Weight Capacity (Kg): 30	Fixed Width and Height. Used for storing general items.

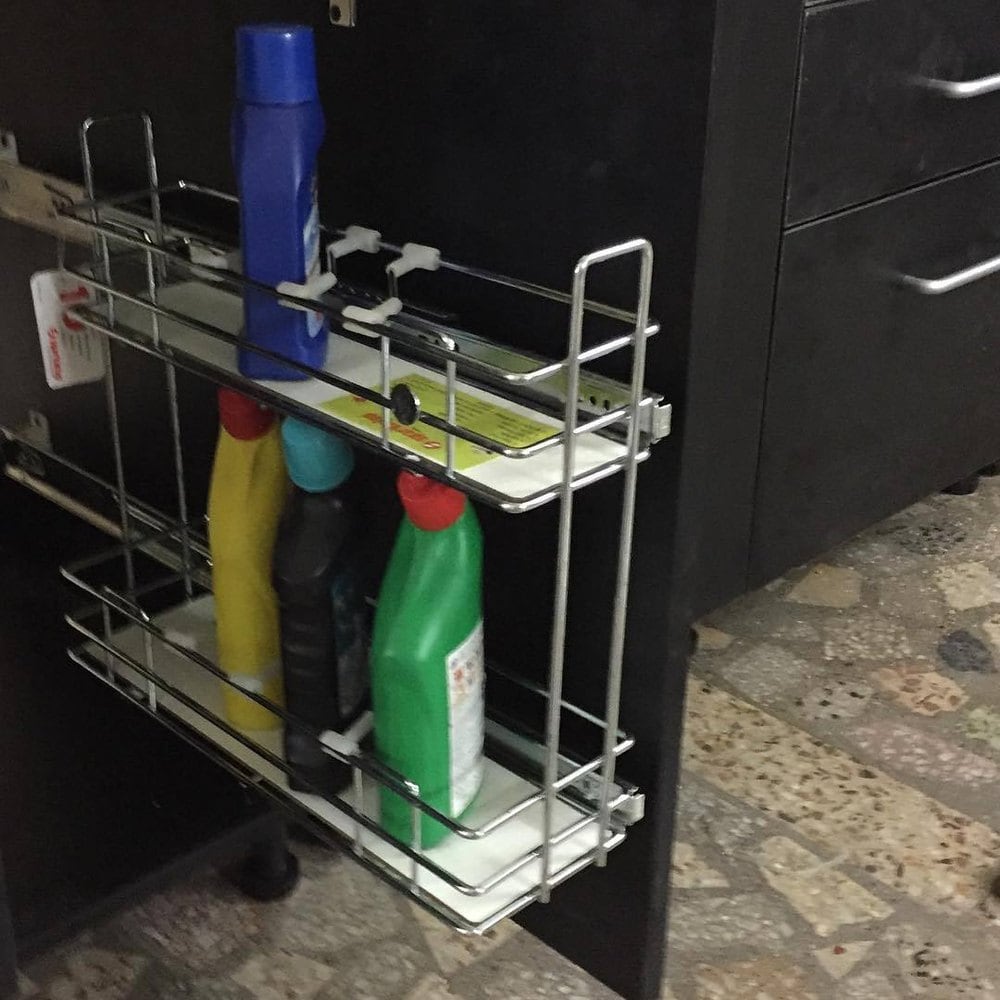

5	Slider Detergent Rack	Width: Approx 120 Height (MM): 400 Min Depth (MM): 460 Weight Capacity (Kg): 8-10	Fixed Width and Height. Generally Used at Sink box.
6	Fixed Detergent Rack	Width: Approx 120 Height (MM): 400 Min Depth (MM): 460 Weight Capacity (Kg): 8-10	Fixed Width and Height. Generally Used at shutter (inside) of Sink box.

Corner Units

S. No.	Name	Specifications	Remarks
1	Magic Corner	Width: Min 950 MM Height (MM): 550-720 Depth (MM): 500 Weight Capacity (Kg): 30-50	Desirable Width is 1000+ MM. Fitted in Blind corner box.

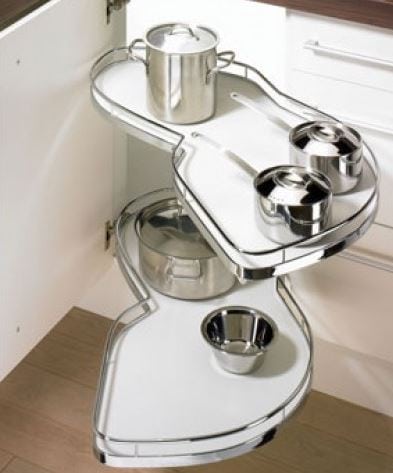

2	S Carousel	Width: Min 950 MM Height (MM): 550-720 Depth (MM): 500 Weight Capacity (Kg): 30-50	Desirable Width range is 1000+ MM. Fitted in Blind corner box.

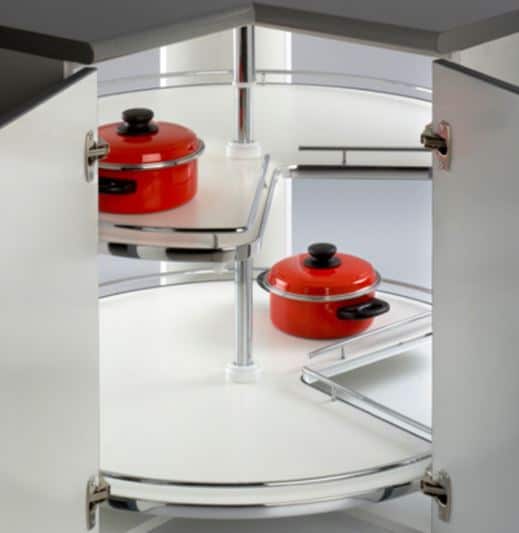

3	3/4 th Corner	Width: 850X850 Min Height (MM): 550-720 Depth (MM): 520 Weight Capacity (Kg): 30-40	Desirable Width range is 900X900 MM. Fitted in L corner Box.

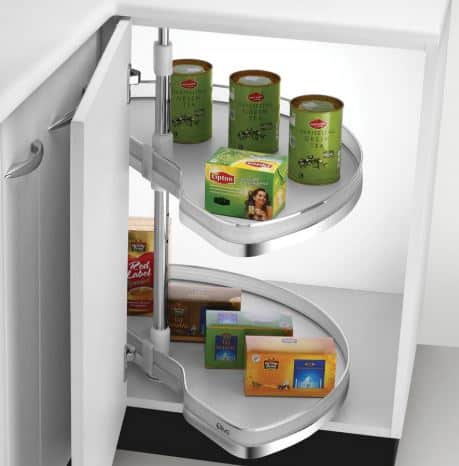

4	D tray	Width: Min 950 MM Height (MM): 550-720 Depth (MM): 500 Weight Capacity (Kg): 30-40	Desirable Width is 1000+ MM. Fitted in Blind corner box.

Tall Units

S. No.	Image	Name	Specifications	Remarks

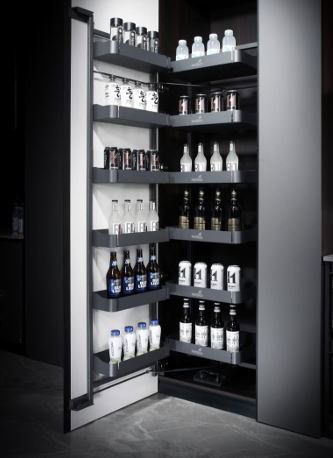

1		Pantry Unit	Width (MM): 450, 600 MM Height (MM): Min 1900 Depth (MM): 500 Weight Capacity (Kg): 50	Only available in standard widths. Best for storing consumable Kitchen items

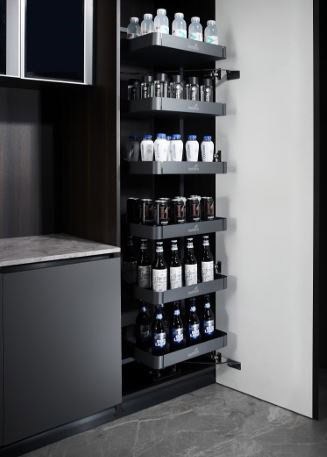

2		Larder Unit	Width (MM): 600 Height (MM): Min 1900 Depth (MM): 500 Weight Capacity (Kg): 50	Only available in single standard width. Best for storing consumable Kitchen items

Wall Units

S. No.	Name	Specifications	Remarks

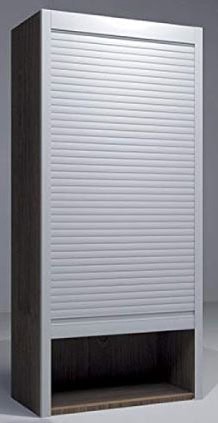

1	Rolling Shutter	Width (MM): 450, 600 MM Height (MM): 1200-1350 Depth (MM): Variable Weight Capacity (Kg): Not Applicable	Only available in standard widths. Best use when shutters not to be opened left or right.
2	Smart Elevator	Width (MM): 600, 900 MM Height (MM): 780 Depth (MM): 350+ Weight Capacity (Kg): Not Applicable	Only available in standard widths. Touch sensor based opening and closing.

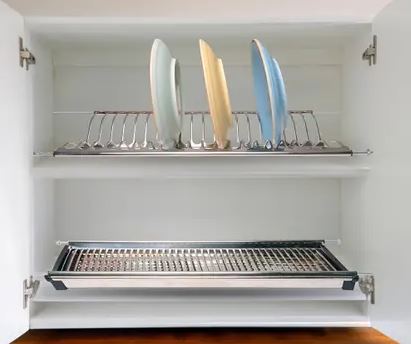

3	GTPT/Dish Rack	Width (MM): 600, 800, 900 Height (MM): Min 600 Depth (MM): 290 Min Weight Capacity (Kg): 20-25	Only available in standard widths. Best for using above the sink for putting wet utensils

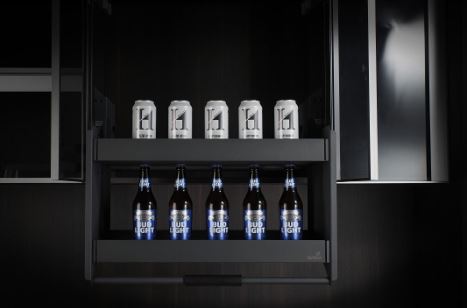

4	Pull Down	Width (MM): 600, 900 MM Height (MM): 600-720 Depth (MM): 270 Min Weight Capacity (Kg): 12-15	Only available in standard widths. Brings items near to user.

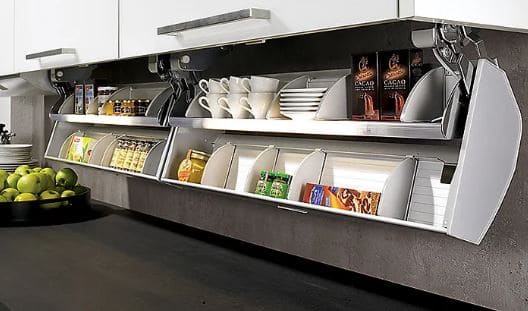

5	Cosario	Width (MM): 600, 900 MM Height (MM): Approx 230 Depth (MM): Approx 300 Min Weight Capacity (Kg): 8-10	Only available in standard widths. Brings items near to user.
6	Spice Holder 3 tier	Width (MM): 450, 600 Height (MM): Min 650 Depth (MM): 150 Min Weight Capacity (Kg): 5-7	Only available in standard widths. Hangs at inner side of Wall unit shutter

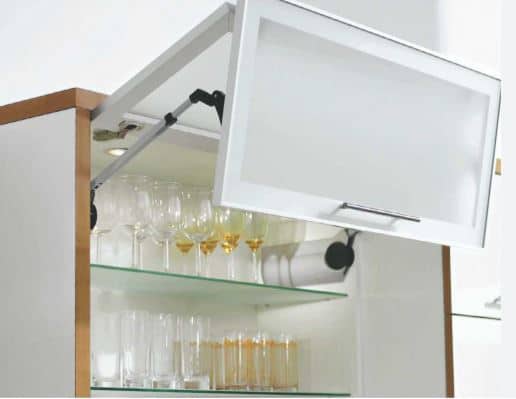

7	Bi-fold Liftup	Width (MM): Variable, Min 500 Height (MM): 600 Min Depth (MM): Not applicable Weight Capacity (Kg): Not Applicable	Best use in boxes aside chimney.

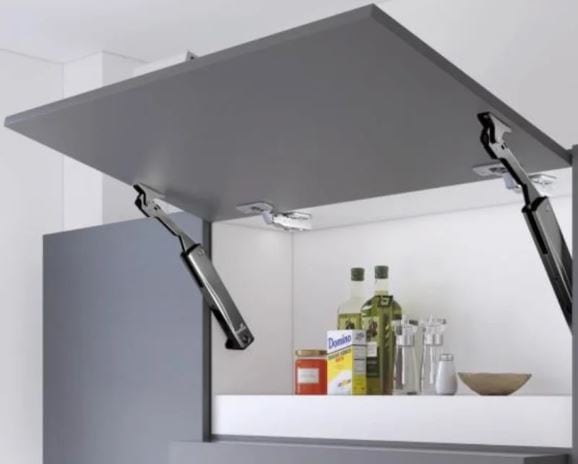

8	Liftup 90 degree opening	Width (MM): Variable, Min 500 Height (MM): Max 400 Depth (MM): Not applicable Weight Capacity (Kg): Not applicable	Suitable for low height cabinets.

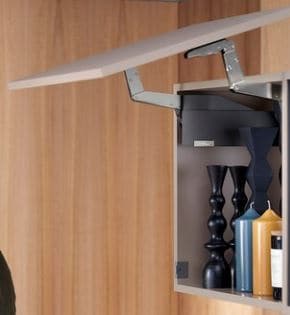

9	Liftup slant opening	Width (MM): Variable, Min 500 Height (MM): Max 720 Depth (MM): Not applicable Weight Capacity (Kg): Not Applicable	Only useful when user’s height is around 5 ft 6 inch or more

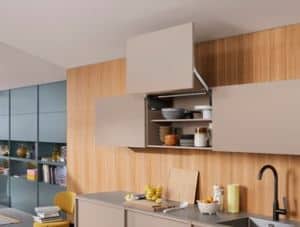

10	Liftup linear opening	Width (MM): Variable, Min 450 Height (MM): Min 500 Depth (MM): Not Applicable Weight Capacity (Kg): Not applicable	Best suited for Box used for Storing and operating Mixer/Grinder/Juicer etc.

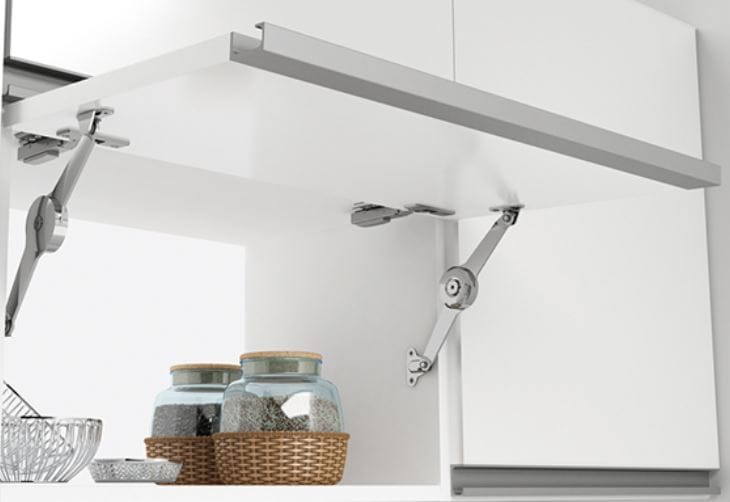

11	Liftup Stay Arm	Width (MM): Variable, Min 400 Height (MM): 400 Max Depth (MM): Not Applicable Weight Capacity (Kg): Not Applicable	Used for small height Boxes like above refrigerator.

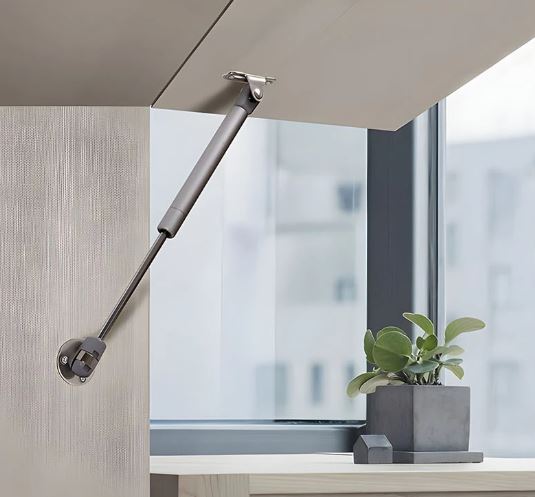

12	Flap Stay Basic	Width (MM): Variable, Min 400 Height (MM): 400 Max Depth (MM): Not Applicable Weight Capacity (Kg): Not Applicable	Could be used single or in pair.

Aluminum Profiles

Aluminum Handle and Glass Shutter Profiles

S. No.	Name	Specifications	Remarks

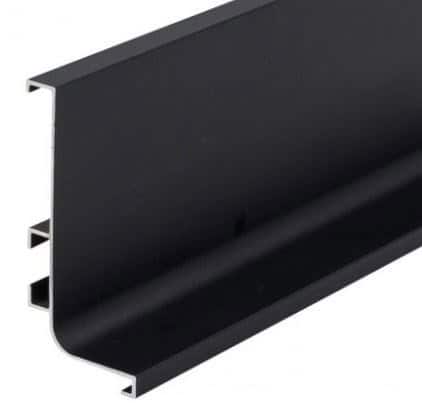

1	Gola Profile L Type	Width (MM): Variable Height (MM): 57 Thickness (MM): 26	Fitted for Single shutter/Facia at top.

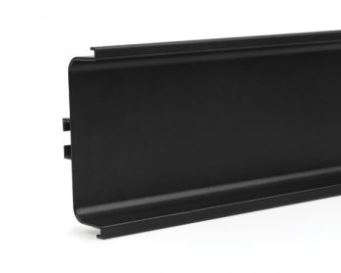

2	Gola Profile C Type	Width (MM): Variable Height (MM): 73.5 Thickness (MM): 26	Fitted for Supporting Double shutter/Facia at middle.

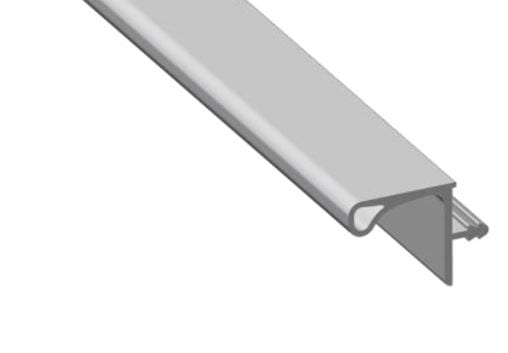

3	Gola profile wall units	Width (MM): Variable Height (MM): 17.5 Thickness (MM): 20.7	Fitted at front of bottom part of Wall Unit Cabinets.
4	G Handle Profile	Width (MM): Variable Height (MM): 35, 40 Thickness (MM): 22.5	Fitted at Top/Bottom of Shutter/Facia.
5	J Handle Profile	Width (MM): Variable Height (MM): 28 Thickness (MM): 22.5	Fitted at Top/Bottom of Shutter/Facia.

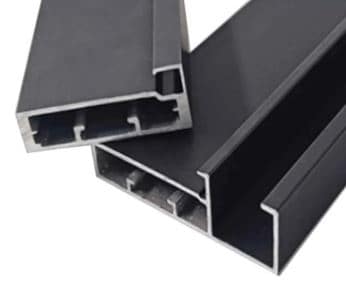

6	Glass Shutter and Handle Profile	Width (MM): Variable Height (MM): 45, 67.5 (Handle profile) Thickness (MM): 21.2	Used for Glass Shutters.

Hinges

S. No.	Name	Specifications	Remarks

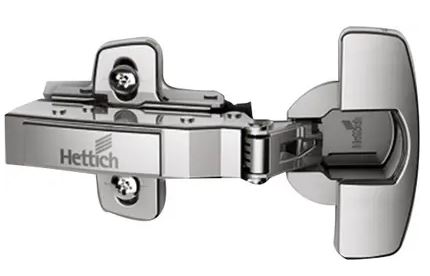

1	0 Crank Hinge	Width (MM): Not Applicable Height (MM): Not Applicable Thickness (MM): Not Applicable	While closed, it fully covers the side of cabinet.
2	8 Crank Hinge	Width (MM): Not Applicable Height (MM): Not Applicable Thickness (MM): Not Applicable	While closed, it covers only 8 MM side thickness of cabinet. Generally used where two shutters run on single side

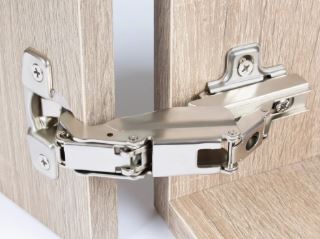

3	Corner Hinge	Width (MM): Not Applicable Height (MM): Not Applicable Thickness (MM): Not Applicable	Opening angle upto 110 degree. Generally used at 3/4th corner and pantry/larder units.
4	Blind Hinge	Width (MM): Not Applicable Height (MM): Not Applicable Thickness (MM): Not Applicable	Closed at 180 degree, opens at 90 degree. Used for blind corner hinges

Mid Way Accessories

Mid Way Accessories - Cargo Series (For Dado Area)

S. No.	Name	Specifications	Remarks
1	Jar Rack	Width: 280 Height (MM): 260 Depth (MM): 155 Weight Capacity (Kg): 3-4	Can be used to keep jars of pickles etc.
2	2 Tier Multipurpose Rack	Width: 185 Height (MM): 325 Depth (MM): 120 Weight Capacity (Kg): 3-4	Can be used to keep small containers of spices etc.
3	Oil Container Rack	Width: 150 Height (MM): 325 Depth (MM): 150 Weight Capacity (Kg): 3-4	Can be used to keep oil, sauce bottles etc.
4	Saucer Rack	Width: 385 Height (MM): 255 Depth (MM): 205 Weight Capacity (Kg): 3-4	Can take upto 6 saucers.
5	Kitchen Roll Holder	Width: 333 Height (MM): 325 Depth (MM): 100 Weight Capacity (Kg): Not Applicable	Can be used to hold kitchen roll, aluminium foil & wrapping roll.
6	Railing Set	Width: 600, 900, 1200 Height (MM): Not Applicable Depth (MM): Not Applicable Weight Capacity (Kg): 8-10	Used for hanging accessories.

Mid Way Accessories - Aluminum Series (For Dado Area)

S. No.	Name	Specifications	Remarks
1	Single Shelf	Width (MM): 330 Height (MM): 260 Depth (MM): 110 Weight Capacity (Kg): 3-4	Made of mild steel, powder coated. Shelf with wooden base.
2	Double Shelf	Width (MM): 330 Height (MM): 310 Depth (MM): 110 Weight Capacity (Kg): 3-4	Made of mild steel, powder coated. Shelf with wooden base.
3	Plain Hooks	Width (MM): 155, 330 Height (MM): 70 Depth (MM): 60 Weight Capacity (Kg): 3-4	Made of mild steel, powder coated.
4	Wooden Hooks	Width (MM): 330 Height (MM): 90 Depth (MM): 80 Weight Capacity (Kg): 3-4	Only available in one standard size.
5	Knife Holder	Width (MM): 330 Height (MM): 290 Min Depth (MM): 80 Weight Capacity (Kg): Not Applicable	Made of mild steel, powder coated. Wooden base and glass upfront for protection.
6	Spoon Holder	Width (MM): 220 Height (MM): 195 Min Depth (MM): 120 Weight Capacity (Kg): Not applicable	Made of mild steel, powder coated.
7	Towel Hanger	Width (MM): 330 Height (MM): 70 Min Depth (MM): 80 Weight Capacity (Kg): Not Applicable	Made of mild steel, powder coated.
8	Foil Holder with Cutter	Width (MM): 330 Height (MM): 100 Depth (MM): 90 Weight Capacity (Kg): Not Applicable	With In-built Cutter.
9	Foil Holder Double with Cutter	Width (MM): 330 Height (MM): 260 Depth (MM): 90 Weight Capacity (Kg): Not Applicable	With In-built Cutters for both.
10	Roll Holder	Width (MM): 240 Min Height (MM): 100 Depth (MM): 120 Weight Capacity (Kg): Not applicable	Made of mild steel, powder coated.
11	Memory Board	Width (MM): 330 Height (MM): 310 Depth (MM): 110 Weight Capacity (Kg): Not applicable	White lacquered glass for writing with wooden shelf.
12	Magnetic Knife Holder	Width (MM): 330 Height (MM): 130 Depth (MM): 70 Weight Capacity (Kg): Not Applicable	Made of mild steel and Wood, powder coated.
13	Spice Holder	Width (MM): 310 Height (MM): 90 Depth (MM): 180 Weight Capacity (Kg): Not Applicable	For keeping glass jars of 200ml with cork lid (set of 4).
14	Aluminum Profile	Width (MM): 600, 900, 1200 Height (MM): 40 Depth (MM): 18 Weight Capacity (Kg): 8-15	Made of Aluminum. Works as a hanging rail.

Wardrobes Accessories

S. No.	Name	Specifications	Remarks

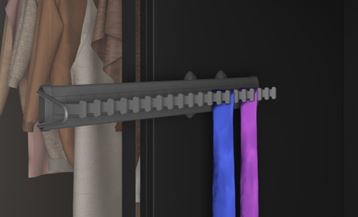

1	Tie Rack	Width (MM): 100 Height (MM): 80 Depth (MM): 430 Weight Capacity (Kg): Not Applicable	Only available in standard width. Side mounted. Sliding out.
2	Tie and Belt Holder	Width (MM): 100 Height (MM): 80 Depth (MM): 430 Weight Capacity (Kg): Not Applicable	Only available in standard width. Side mounted. Sliding out.

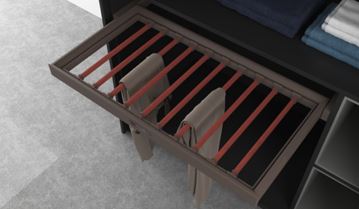

3	Trousers Rack	Width (MM): 600, 900 Height (MM): Min 80 Depth (MM): 470 Min Weight Capacity (Kg): 20-25	Only available in standard widths and depths. Require space below for hang margin Sliding like drawer.
4	Lateral Trousers Rack	Width (MM): 400+ Height (MM): 115 Depth (MM): 460 Weight Capacity (Kg): Not applicable	Only available in standard width and depth. Side mounted, Left or right.

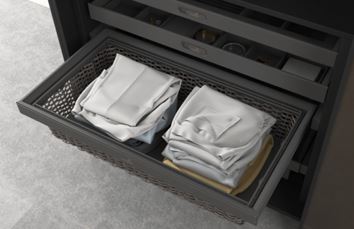

5	Clothes Basket	Width (MM): 600, 900 Height (MM): 180 Min Depth (MM): 470 Weight Capacity (Kg): 6-8	Only available in standard width. Fitted like inner drawer. Could be used with front open

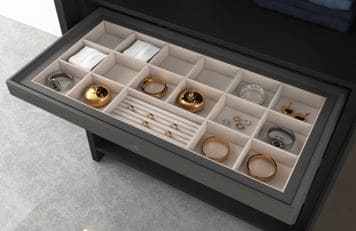

6	Sorting Box	Width (MM): 600, 900 Height (MM): 80 Min Depth (MM): 470 Weight Capacity (Kg): Not applicable	Only available in standard width. Works like an inner drawer.

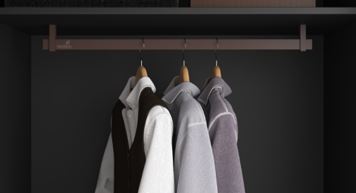

7	Fixed Cloth Rod	Width (MM): Variable Height (MM): 80 Min Thickness (MM): 15 Rectangular Weight Capacity (Kg): Not Applicable	Could be fixed at sides or at top.

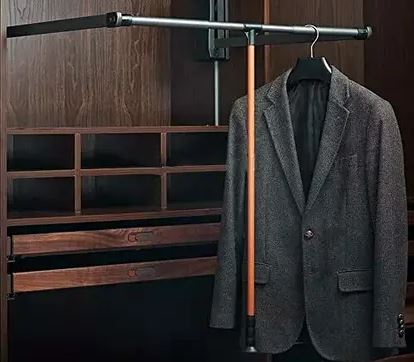

8	Garment Liftup	Width (MM): 580 (540-690), 960 (920-1240) Height (MM): 850 Min Depth (MM): 140 Weight Capacity (Kg): 15-20	Available only in standard width. Easy to pull down.

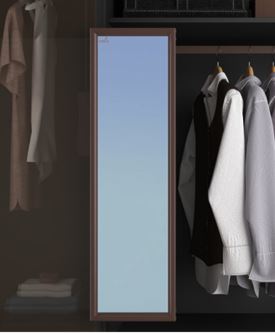

9	Revolving Mirror	Width (MM): 350 Height (MM): 1000 Depth (MM): Not applicable Weight Capacity (Kg): Not Applicable	Side mounted at wardrobes, could be pulled out and pushed back to side.

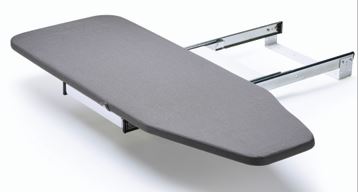

10	Ironing board	Width (MM): 400 Min Height (MM): 200 Depth (MM): 450+ Weight Capacity (Kg): Not applicable	Could be closed like a drawer after usage.

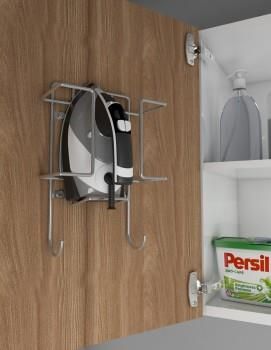

11	Iron Holder	Width (MM): 190 Height (MM): 300 Depth (MM): 90 Weight Capacity (Kg): Not applicable	Could be placed at inner side of shutter.

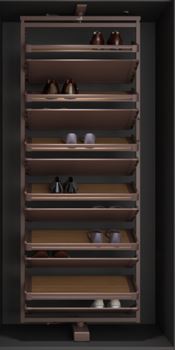

12	Shoe Rack	Width (MM): 700 (4 & 12 Tier) Height (MM): 790-990 (4 tier), 1910-2110 (12 tier) Depth (MM): 360 Weight Capacity (Kg): Not Applicable	Only available in single width. Available in 4 tier and 12 tier variations. 360 degree revolving.

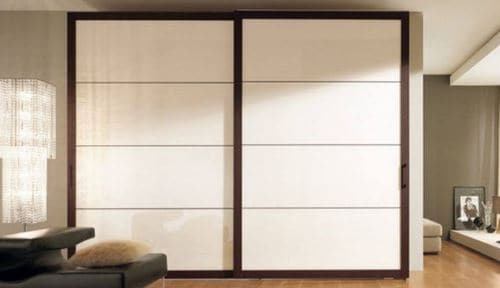

13	2 Door Slider	Width (MM): 550-2000 per door Height (MM): 2600 Max Depth (MM): Not Applicable Weight Capacity (Kg): 50-60 per door	Providing almost 90% opening of smaller door.

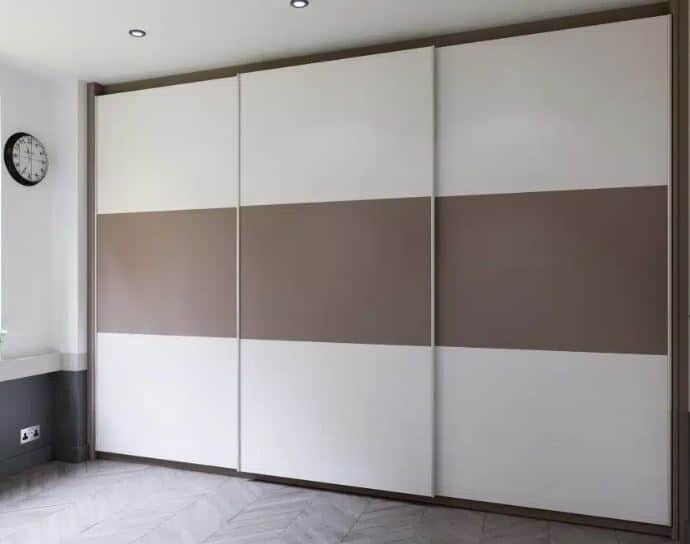

14	3 Door Slider	Width (MM): 550-1500 per door Height (MM): 2600 Max Depth (MM): Not Applicable Weight Capacity (Kg): 50 per door	Providing almost 60% opening of total width.

Free Standing Accessories

S. No.	Name	Specifications	Remarks

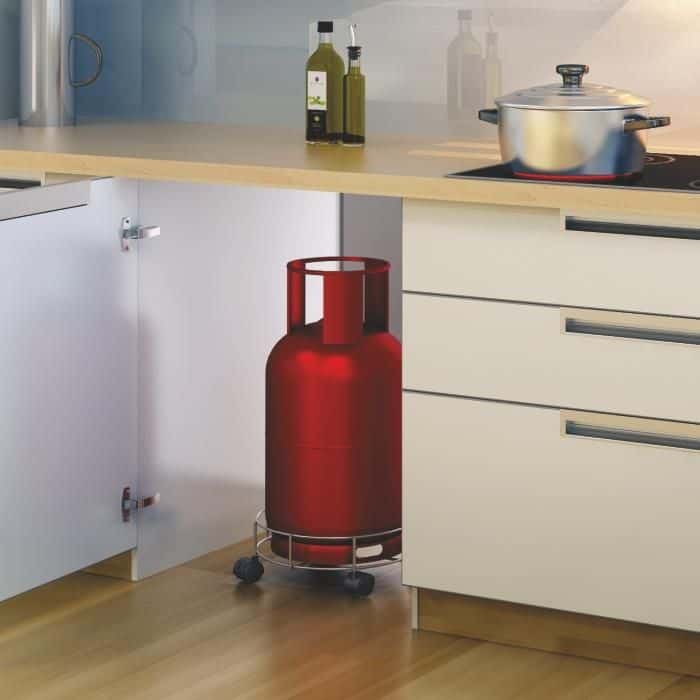

1	Cylinder Trolley

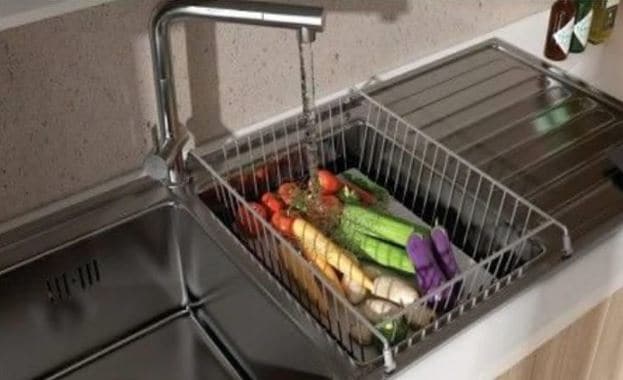

2	Fruit and Vegetable Drainer	Width: 340 MM Height (MM): 130 Depth (MM): 500 Weight Capacity (Kg): Not Applicable	Used over the existing sink. Could be removed after usage

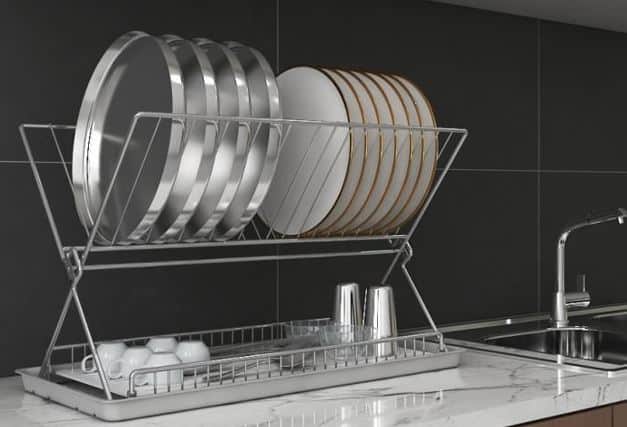

3	Dish Drainer	Width: 540 Height (MM): 330 Depth (MM): 340 Weight Capacity (Kg): 10-12	Can hold upto 5 Thalis and 9 plates. Bottom mesh could be used for holding spoons, forks, cups, bowls, glass and Knives etc.
